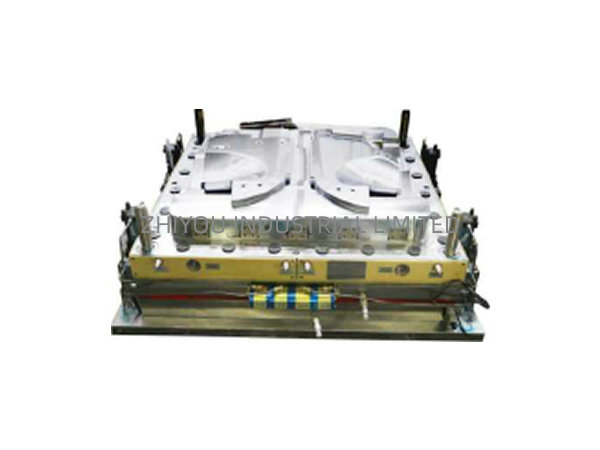

Mold name: left and right side panels of the hood;

Mold size: 1940 X 1805 X 990mm;

Mould weight: 17000KG;

Cavity steel: 1.2738 hardness HRC33-35; core steel 1.2311 hardness HRC31-34

The cutting edge position adopts laser flame quenching treatment, the hardness is HRC55-65;

Process: SMC press  molding;

Molding pressure: 1100T.
